300nm Optical Broadband Ultraviolet Pass Filter FWHM 50nm Overview
300nm Optical Broadband Ultraviolet Pass Filter FWHM 50nm is an optical UV bandpass filter which transmit 300+/-25nm. The center wavelength is 300+/-5nm, FWHM is 50+/-5nm. It allows a broadband ultraviolet pass and blocking the other unwanted wavelength.
300nm Optical Broadband Ultraviolet Pass Filter FWHM 50nm
300nm Optical Broadband Ultraviolet Pass Filter FWHM 50nm Technical Specifcation
- Centerwavelength: 300+/-5nm
- FWHM: 50+/-5nm

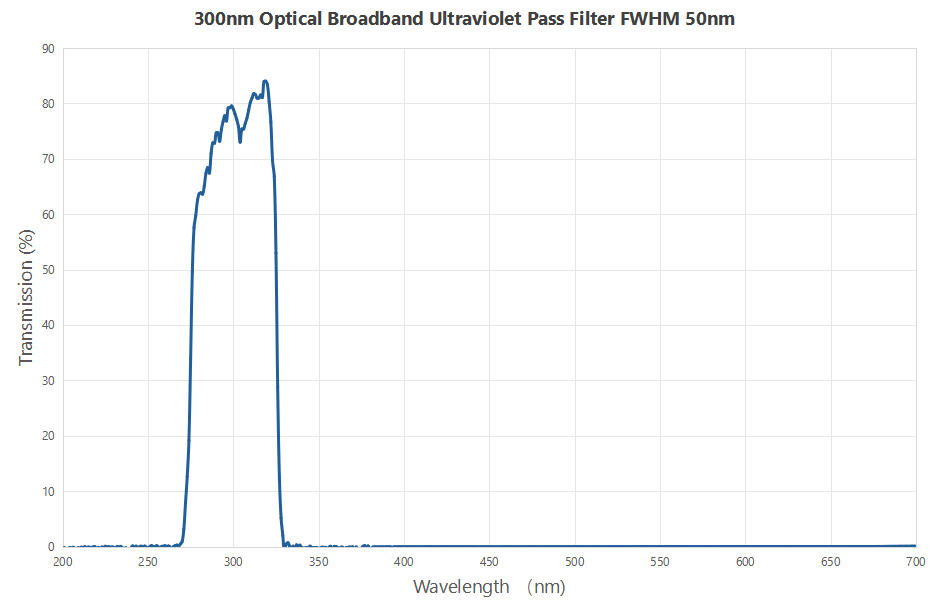

- Transmission Peak >85%@280-380nm
- Blocking depth:410-650nm@OD4 average
- Standard Size in stock: Dia25.4*6mm
- We have various standard wavelength and size of UV bandpass filters in stock. Contact our sales for more detail.
Other Wavelength Of Optical UV Broadband Ultraviolet Pass Filters In Stock:
- 270/40nm
- 280/80nm
- 340/100nm
- 320/100nm
- ….More please contact sales
300nm Optical Broadband Ultraviolet Pass Filter FWHM 50nm Applications
- UV Fluorescence Detection
Some materials and biological samples produce specific fluorescence signals when excited by 300nm UV light. A 300/50nm UV bandpass filter can effectively excite fluorescent molecules while reducing interference from stray light.
- Environmental Monitoring
Gases such as ozone and carbon dioxide have absorption peaks near 300nm. A 300/50nm UV bandpass filter, combined with a light source and detector, can monitor air quality.
- UV Sterilization
The 300nm wavelength is close to the UVA/UVB boundary. A 300/50nm bandpass filter can be used as a key component in germicidal lamps for systematic disinfection and sterilization, destroying the DNA and proteins of D bacteria.
