It has key features below

• The lens shape is a circular lens array, and it adopts a square arrangement, supporting spherical or aspherical design
• We use advanced photolithography technology to control the key optical parameters of the lens, such as size, array, focal length, etc., which is higher than the ordinary molding precision.
• We have two materials to choose from, fused quartz and single crystal silicon, which can meet the needs of ultraviolet, visible light or infrared bands
• The standard sub-unit aperture is optional from 26.5um to 500um, and we can customize the array pitch of 10um-1500nm.
• The standard center wavelengths are 532nm, 632.8nm, 1550nm, 1064nm, 850nm, 940nm. It can meet most laser wavelength requirements



In-house Micro Optic Arrays Design & Manufacturing Capability



Standard Fused Silica Circular Microlens Array, Square Grid Series Series



Standard Silicon Circular Microlens Array, Square Grid Seres

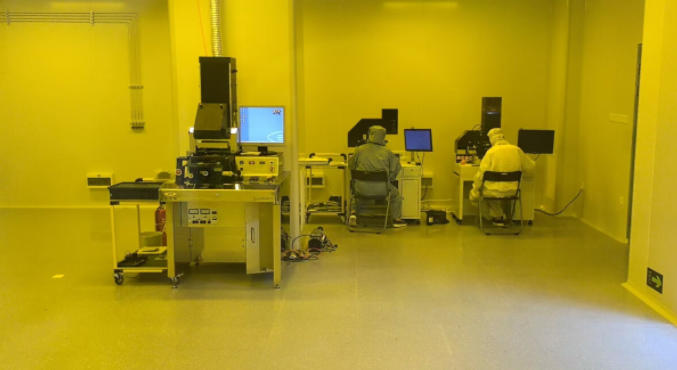

How we fabricate Micro lens Arrays Using Photolithography Technique

• Application confirmation
  We fully communicate with customers about their applications and needs
• Optical design and simulation
  Optical design and simulation are our core capabilities. We have three scientists from the Chinese Academy of Sciences who are proficient in physics, mechanics, optics and other fields for optical design
• Mask design and production
  We can make masks with optical precision according to the requirements of photolithography accuracy, graphic resolution, line width, etc.
• UV exposure and photoresist
  Patterning is performed by transferring the mask group to the photoresist
• Optical coating
  We have our own coating equipment, which can produce anti-reflection film, reflective film and filter film according to customer needs
• Cold processing and packaging
  We mechanically divide the product from large size to the required size, and then perform certain cutting, polishing and chamfering



Circular Micro lens Array Applications

• Laser Shaping
  The light spot output by a high-power laser usually has uneven energy distribution and irregular shape. By placing the microlens array in front of the laser output end, the uniform shaping, collimation and divergence angle of the beam can be controlled
• Laser Medical Aesthetics
  In medical aesthetics, medical aesthetics laser systems such as hair removal, skin rejuvenation, picosecond and dot matrix beauty have high uniformity of laser light spot and laser energy. Microarray lenses can achieve uniform laser irradiation and optimize the energy distribution
• Lidar
  In laser radar equipment such as autonomous driving, robots, mapping, and security, the resolution and accuracy of laser radar are very high. By applying microarray lenses, laser beam splitting, homogenization and light spot shaping can be achieved.
• Optical Communication
  The optical communication module has high requirements for beam shaping and energy uniformity. The microarray lens can be used as a homogenizer of the light source to improve the signal strength of optical communication
