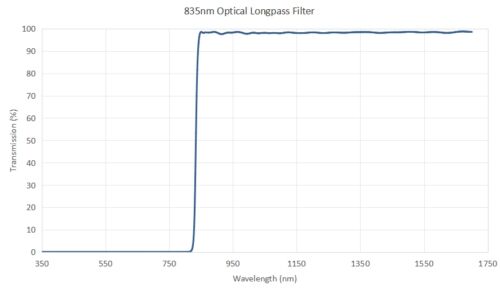

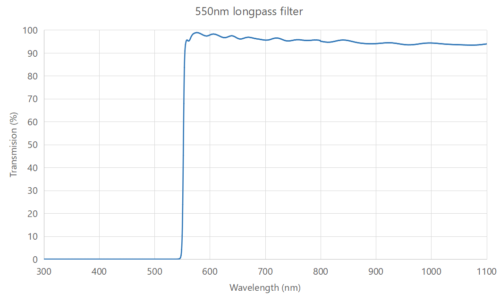

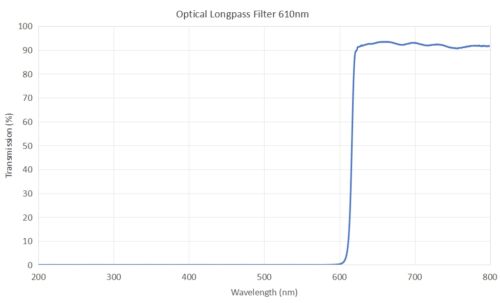

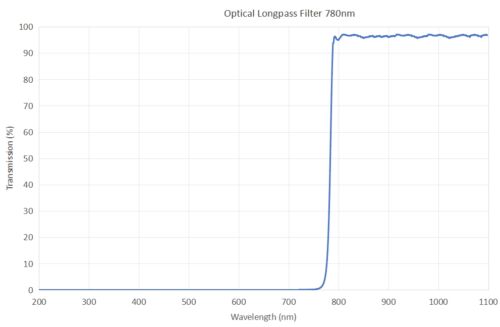

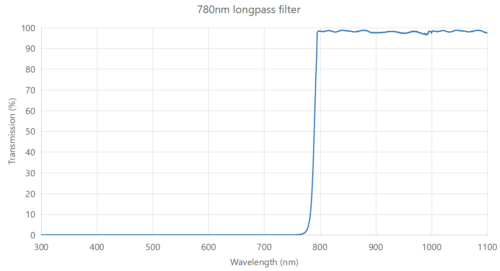

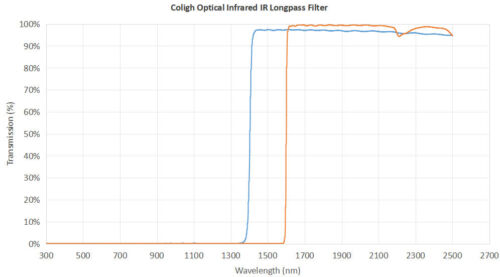

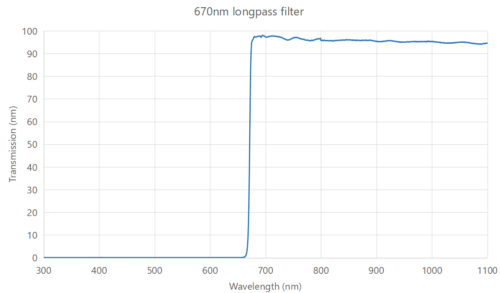

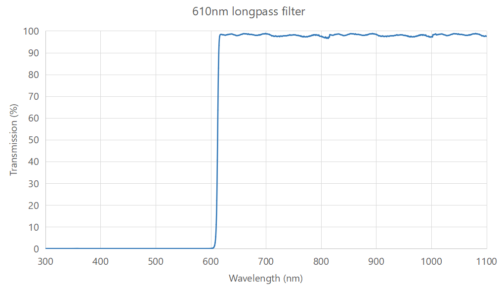

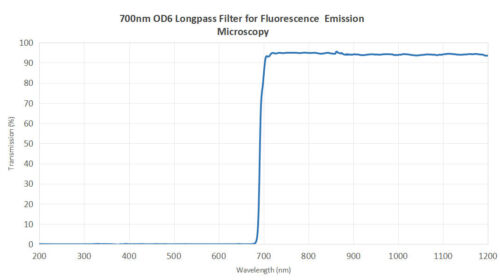

Long wave pass filter LWP is always called longpass filter. It also can be called edge filter. It blocks shorter wavelength and transmit higher wavelength. Longpass filters could replace bandpass filters in the fluorescence applications.

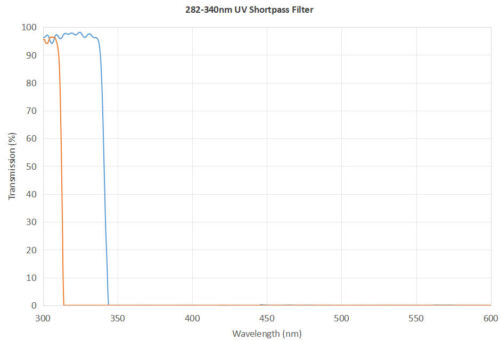

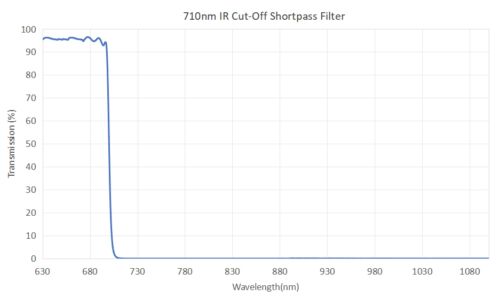

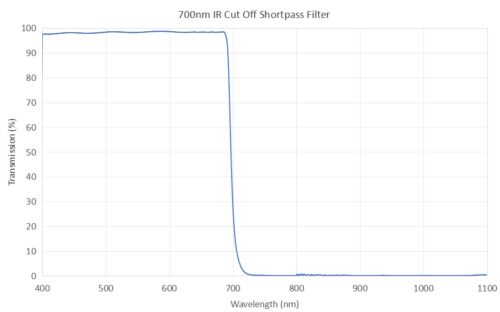

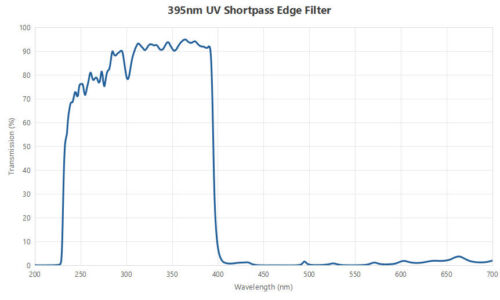

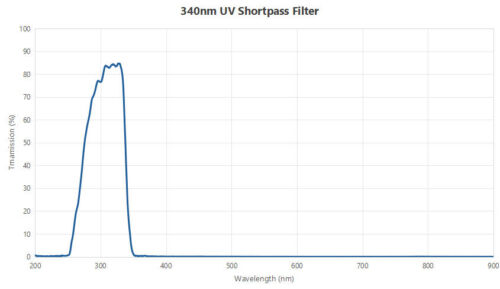

Short wave pass filter SWP is always called shortpass filter. It transmits shorter wavelength and block longer wavelength. It usually can be used in cameras to block the unwanted near infrared light
Coligh’s capability of Shortpass filter and long pass filter:
> Size allowance -0.0, -0.1mm
> Surface quality: 60/40, 40/20 as per MIL-F-48616
> Wavelength range:
Longpass filter 250-1200nm
Shortpass filter 400-1200nm
> Size: 3-100mm
> Capable of high steepness edge transition from 10% to 90% transmission or 10% transmission to OD4 blocking depth
