Precision Laser Processing with Beam Shaping Optics Components
Optical Requirements in Precision Laser Processing

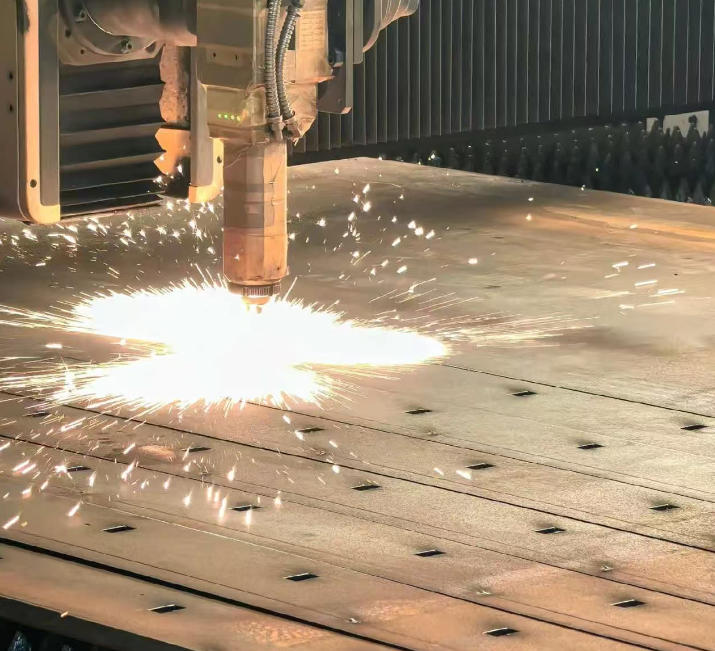

In laser processing applications such as laser cutting, laser welding, and laser microstructuring, the quality of the processed material is often determined by the beam quality of the laser optical system. The shape of the spot, energy distribution, and stability directly dictate the beam quality.
Furthermore, as the demand for processing precision continues to rise in various applications, precise optical design must incorporate parameters and considerations such as:
– Beam quality
– Laser power
– Spot size
– Focus control
– Low-aberration design
Challenges in Precision Laser Processing Systems
During laser processing, the following issues frequently arise:
- Unstable edge quality, such as poor processing edges exhibiting burrs, edge collapse, or inconsistent width
- Excessive heat-affected zones, including material melting, discoloration, or charred microstructures
- Unstable processing accuracy, often resulting in uncontrollable processing depth, pattern misalignment, or ghosting
In many cases, these issues stem not from unstable laser source output, but rather from uneven spatial energy distribution within the beam. This results in beam spot defects that compromise processing consistency.
Why Beam Homogenization Is Critical in Microprocessing
Most industrial and scientific lasers emit Gaussian beams, characterized by high energy concentration at the center and low energy at the edges, with localized hot spots. Consequently, in laser processing, any uneven energy distribution inevitably leads to inconsistent processing results.
This is particularly critical in high-end laser applications such as micro-hole arrays, display panel processing, and ultra-fast precision machining. Without laser homogenization, the entire laser processing operation would collapse.
Without laser homogenization, the aforementioned processing challenges become unavoidable. Laser homogenization employs homogenizers, micro-array lenses, or DOEs to flatten the Gaussian beam into a flat-top spot. This flat-top spot significantly reduces the heat-affected zone while ensuring consistent processing depth, line width, and aperture.
Beam Homogenization with Microlens Arrays
Microarray lenses play a central role in laser beam homogenization, transforming the inherently uneven distribution of laser energy into a spatially uniform spot. These lenses split the incident beam into numerous sub-beams, which are then scattered and overlapped to form overlapping spots on the homogenization plane, enabling the output of a near-apochromatic distribution.
In laser processing, refractive microlens arrays are the most prevalent, typically featuring square or hexagonal arrays composed of spherical or aspherical microlenses. Coligh manufactures a wide range of refractive microlenses and welcomes inquiries for custom solutions.
Microlens Arrays vs DOE in Precision Laser Processing
As precision laser processing techniques evolve toward higher efficiency and more complex machining modes, traditional refractive microlens arrays are increasingly constrained in beam shaping. In contrast, diffractive optical elements offer greater design freedom for beam shaping by precisely modulating the wavefront.
Beam Shaping and Beam Splitting Using Diffractive Optical Elements
Diffractive optical elements enable custom spot shapes and powder patterns with tailored energy distribution during fabrication, making them ideal for complex beam shaping and splitting. Through diffractive phase design, lasers form regular spot arrays, flat-top, annular, and linear energy distributions on a plane. This enables DOE-based laser processing for multi-point, multi-hole, and multi-line drilling, scribing, and exposure. Additionally, DOE can directly generate flat-top spots, annular spots, bar spots, and rectangular spots for specialized ablation applications.
Coligh’s Optical Solutions for Precision Laser Processing
Coligh specializes in the R&D and manufacturing of microlens arrays and diffractive optical elements. We have served numerous laser processing and laser shaping companies. We not only offer customized production but also assist clients with optical design, precisely controlling microlens structure parameters and processing accuracy, including customized spot shapes. We provide multiple solutions. We focus not only on design specifications but also emphasize batch repeatability and consistency. Please contact our sales team for more information.
