UV bandpass filter

UV bandpass filter/UV optical filter are usually used in UV detection applications. Visible light can be adsorbed or reflected with UV filters.

Typical wavelength:214nm,220nm,230nm,254nm, 260nm,265nm,273nm,275nm,285nm,290nm,313nm,340nm,365nm,375nm,380nm,355nm,320nm

Wavelength range: 200-400nm
Size capability: 3-100mm typical diameter: D12, D10, D15, D20, D25
Transmission: Capability of high transmission, custom by clients
Substrate: BK7, K9, B270,JGS1, color glass and float glass
Surface quality: 60-40

Product Category

  • Custom Optical Filter
    • Bandpass Filter
      • UV Bandpass Filter
      • VIS Bandpass Filter
      • NlR Bandpass Filter
      • SWlR Bandpass Filter
      • Infrared Bandpass Filter
      • Multi Bandpass Filter
      • Multi Spectral Filter
    • Longpass Filter
    • Shortpass Filter
    • Notch Filter
    • Laser Line Filter
    • Beam Splitter
    • Dichroic Filter
  • Custom Micro Optics
    • Micro Lens Arrays (MLA)
      • Refractive Micro Lens Array
      • Diffractive Microlens Arrays
      • Linear Microlens Arrays
      • Cylindrical Microlens Arrays
      • Random Pattern Microlens Arrays
      • 3D Tof Microlens Arrays
    • Diffractive Optical Elements (DOEs)
      • 1D Diffractive Beam Splitters
      • 2D Diffractive Beam Splitters
      • Diffraction Gratings
      • Phase Optical Elements
      • Reflective Beam Homogenizer
      • Top Hat Beam Shaper
      • Diffractive Diffuser
    • Test & Calibration Targets
    • Accessories
      • Laser Handpiece
      • Microlens Arrays Mount
  • Custom Infrared Optics
    • Aspherical Lens
    • Spherical Lens
    • Optical Dome
    • Optical Windows
    • Optical Mirrors
    • Optical Prism
    • Freeform Custom Shaped
  • 240nm UVC Optical UV Filter FWHM 20nm

    240nm UVC Optical UV Filter FWHM 20nm

    240nm UVC Optical UV Filter FWHM 20nm is a optical UV filter specially designed for deep-UV Raman, ROM and NDUV. Coligh customs and manufactures various optical UV filter. Contact us for more detail.

    product details
  • 254nm UV Bandpass Filter FWHM 10nm

    254nm UV Bandpass Filter FWHM 10nm

    Item No: COBF254-10

    Type: Bandpass filter

    Coating: Hard coating

    product details
  • 254nm UV bandpass filter FWHM 30nm

    254nm UV bandpass filter FWHM 30nm

    Item No: COBF254-30

    Type: Bandpass filter

    Coating: Hard coating

    product details

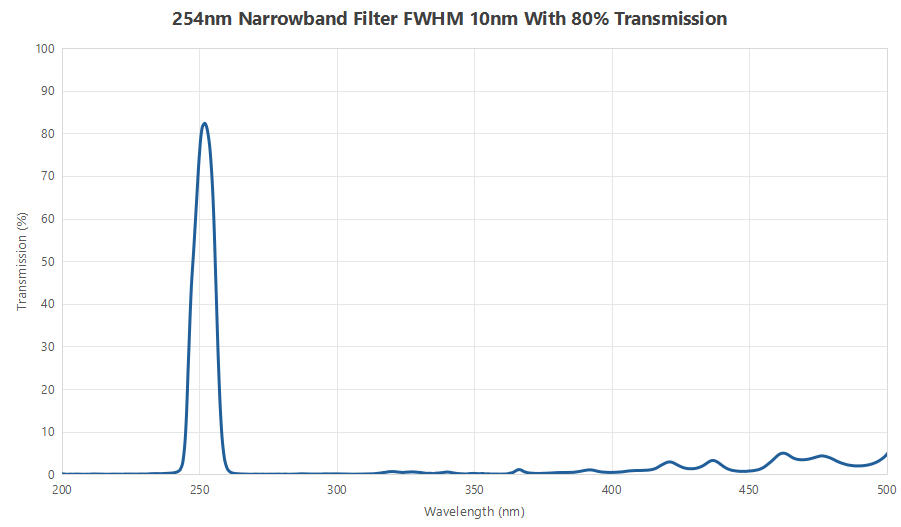

  • 254nm UV Narrowband Filter FWHM 10nm 80% Transmission

    254nm UV Narrowband Filter FWHM 10nm 80% Transmission

    254nm UV Narrowband Filter FWHM 10nm 80% Transmission is an optical filter which high transmission at 254nm. Coligh customs and manufactures high quality UV bandpass filters narrow to 5nm. Contact us for more detail.

    product details
  • 260nm Optical UV Broadband Filters FWHM 40nm

    260nm Optical UV Broadband Filters FWHM 40nm

    260nm Optical UV Broadband Filters FWHM 40nm is an UVC bandpass filters which allow 260+/-20nm  light to pass. Coligh manufactures various UV broadband filters.

    product details
  • 260nm UV Bandpass Filter FWHM 12nm

    260nm UV Bandpass Filter FWHM 12nm

    Item No: COBF260-12

    Type: Bandpass filter

    Coating: Hard coating

    product details
  • 265nm UV Bandpass Filter FWHM 10nm

    265nm UV Bandpass Filter FWHM 10nm

    Item No: COBF265-10

    Type: UV Bandpass filter

    Coating: Hard coating

    product details
  • 275nm Optical UV Interference Filter FWHM 10nm 80% Transmission

    275nm Optical UV Interference Filter FWHM 10nm 80% Transmission

    275nm Optical UV Interference Filter FWHM 10nm 80% Transmission is specially designed for 275nm UV LED. Coligh customs and manufactures various optical UV filters.

    product details
  • 275nm UV bandpass filter FWHM 15nm

    275nm UV bandpass filter FWHM 15nm

    Item No: COBF275-15

    Type: UV Bandpass filter

    Coating: Hard coating

    product details
  • 275nm UV Fused Silica Filter FWHM 10nm

    275nm UV Fused Silica Filter FWHM 10nm

    The 275nm UV Fused Silica Filter (FWHM 10nm) is an ultraviolet optical filter featuring a fused silica substrate, a center wavelength of 275nm, and a full width at half maximum (FWHM) of 10nm. Coligh customizes and manufactures UV optical filters—ranging from EUV to UVC—in China.

    product details

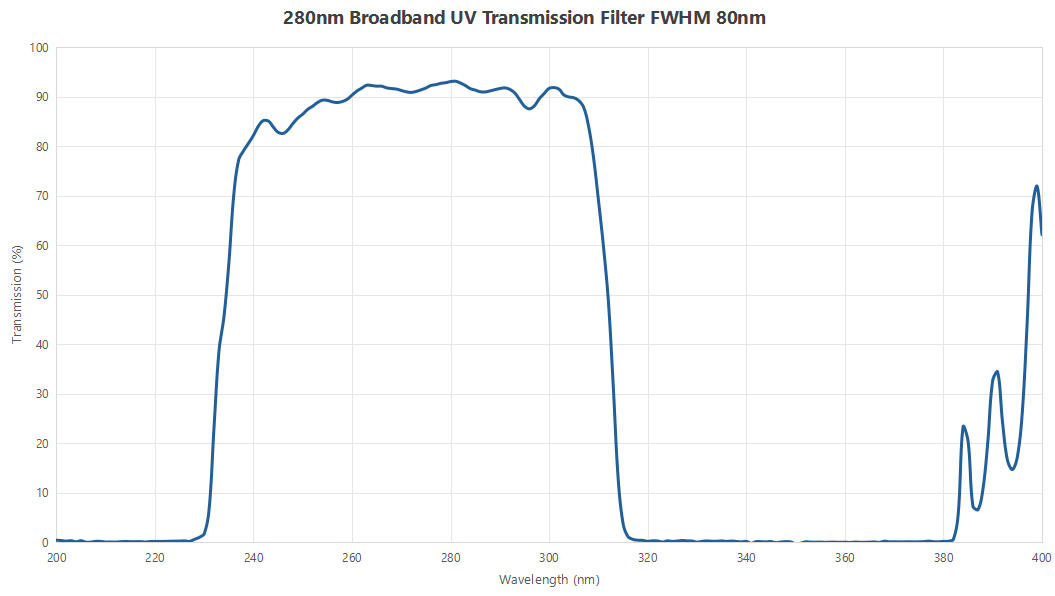

  • 280nm Broadband UV Transmission Filter FWHM 80nm

    280nm Broadband UV Transmission Filter FWHM 80nm

    280nm Broadband UV Transmission Filter FWHM 80nm is specially designed to transmit 240-310nm and block 266nm and 355nm. Coligh customs and manufactures various UV transmission filters. Contact us for more detail.

    product details
  • 280nm UV Bandpass Filter FWHM 12nm

    280nm UV Bandpass Filter FWHM 12nm

    Item No: COBF280-12

    Type: UV Bandpass filter

    Coating: Hard coating

    product details
